ADA-4417 Stainless Steel Indicator
This NMI Trade Approved ADA-4417 indicator provides fast, precise weight readings. The ADA-4417 indicator is IP69 rated with a stainless steel enclosure, has 2 bi-directional RS232 ports, and two power supply variants: AC (110-240VAC 50/60Hz) or DC (5-24 VDC). It handles scale outputs from 0.2-5.0mV/V and is optimised for scales above 0.5mV/V, delivering up to 10,000 display divisions. Bracket comes standard.
Product Brochure & Manual
Related Video

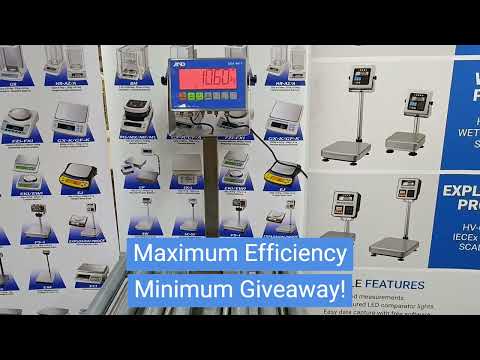

Gravity Roller with ADA-4417 Indicator
Features
- Large 6-digit Backlit LCD Display, with 50mm high characters
- Multi coloured RGB Display – 9 colour
- One year warranty
- NMI Approval certificate S869/ NZ TS Approval certificate 2478
- AC powered [100~240V 50/60Hz] or DC [5-24 VDC]
- Protected to IP-68 standards
- Conditions for Target or Grading alerts
- 304 Stainless Steel enclosure
-
- AND View programming software is available (Click to download the ZIP file)
- Two RS232 bidirectional serial ports independently configurable for network, printing or remote display functions
- 4 digital inputs, and 4 high-side digital outputs that are electrically isolated. Outputs are capable of driving low voltage DC actuators directly
- OPTOLINK connection option requires an optiLink cable (sold seperately)
- Accumulation Function
- Counting Function
- Multiple data strings selectable as well as customisable data strings
- UFC – Universal Flexi Coms allows you to customise the printer data string.
- Dimensions: 259mm x 70mm x 175mm
Additional Information
Digital Input and Output Connection
The isolated digital inputs should be connected as shown in the diagram below.
The digital outputs are isolated high side drivers. They should be conneccted as indicated in the diagram below.
The power supply for the outputs should be 5 – 24 Vdc, with sufficient current capacity to drive the solenoids. Each digital output has a drive capacity of up to 400mA. Cable shields should be connected to the indicator shild pins as shown.
Model & Capacity(scroll right for purchase/enquiry details)
| Model | Capacity | Weighing Pan | Unit Price excluding GST |
Action |
|---|---|---|---|---|
| ADA-4417 (DC Power) |
Stainless Steel Indicator
|
NA | $1210.00 |
 Add to cart
|
| ADA-4417 (AC Power) |
Stainless Steel Indicator
|
NA | $1290.00 |
Add to cart
|
Accessories & Options(scroll right for purchase/enquiry details)
| Accessories & Options | Description | Unit Price excluding GST |
Action |
|---|---|---|---|
| OptiLINK cable to suit ADA-4417 indicator | Cable | $125.00 |
Add to cart
|
| ADA-4417 Rechargeable Li-ion Battery Pack | Battery Pack | $315.00 |
Add to cart
|
| OP-03 Additional RS-232 Card | OP-03 | $190.00 |
Add to cart
|
| OP-04 RS-485 Interface Option | OP-04 | $190.00 |
Add to cart
|
| OP-07 4-20mA/0-10V Analog Output | OP-07 | $465.00 |
Add to cart
|
-
-
Where can I purchase this equipment?
A&D Australiasia has a nation wide dealer network with outlets in all capital cities and in most regional locations. Call Toll Free 1800 241 434 for the location of your nearest dealer.
My product requires service/repair, how do I arrange this?
Contact the A&D Australiasia Service department on 08 8301 8120 or at [email protected] and they can advise on and coordinate your service requirement.
-
All A&D products purchased within Australia are covered by a warranty period which varies from 12 months to 5 years depending on the model.
Warranty covers against any defects in the material and workmanship negligence during the manufacture or assembly of the product for the period of the warranty.
Warranty claims should be submitted through your initial dealer or place of purchase with your proof of purchase tax invoice.
