AD-4212D Micro Analytical Weighing Sensor

The AD-4212D series brings the precision of high-end laboratory analytical balances to production lines/systems with unprecedented flexibility and utility. High Resolution, High Stability & Space saving. The AD-4212D comes standard with a small breeze break, which reduces the destabilizing effects of drafts and air turbulence.

Product Brochure & Manual

Related Video

2id_Tc7X2og
AND Weighing

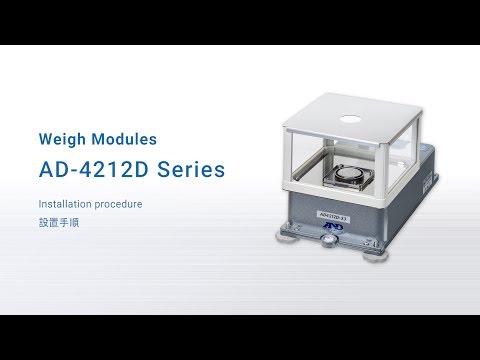

AD-4212D Weighing Module Installation

xc3C_OdhaPE
AND Weighing

AD-4212D Weighing whilst being exposed to wind

Features

  • Minimum weighing value from 1 µg
  • EM-DLC* technology for direct connection to a PC or PLC
  • Compact size and resistance to vacuum state ideal for use in a glove box
  • Stable measurement in a fume hood (for 0.1 mg readability only)
  • Internal calibration function to ensure accuracy with one key press
  • Protection mechanism against vertical and transverse overloading due to actuator malfunctions, etc.
  • Adjustable response characteristics to help cope with the effects of drafts and vibrations
  • Automatic zero display after data output
  • Equipped with a small breeze break
  • Possible to design and attach your preferred weighing pan/receptacle
  • Clock and calendar function
  • Underhook for weighing magnetic materials and density measurements
  • GLP/GMP/GCP/ISO compliant output
  • Clock and calendar function
  • Built-in temperature sensor for temperature data output
  • Can be secured directly to a base by removing the leveling feet and using screws
  • Water-resistant cap for cleaning**
  • High extensibility with A&D’s various peripheral devices
  • AD-1691 weighing environment analyser provided as standard

Additional Information

Specifications

Model & Capacity(scroll right for purchase/enquiry details)

Model Capacity Weighing Pan Unit Price
excluding GST
Action
AD-4212D-33
32g x 0.001mg
Ø34 mm $ POA Enquire
AD-4212D-32
5.1g x 0.001mg / 32g x 0.01mg
Ø34 mm $ POA Enquire
AD-4212D-302
320g x 0.01mg
Ø50 mm $ POA Enquire
AD-4212D-301
320g x 0.1mg
Ø50 mm $ POA Enquire
