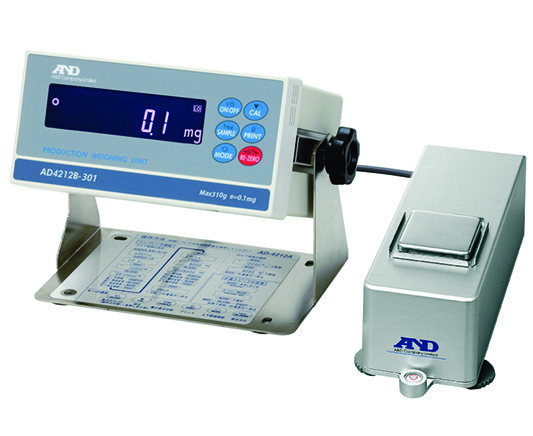

AD-4212B Precision Weighing Sensor

The AD-4212B Precision series of A&D’s production-line precision balances is not only suitable for building extremely sensitive weighing scales, but it is also fast and surprising affordable. The level of control filling, coating, and dispensing amounts in high-tech industries is growing ever stricter, raising the precision levels required of such applications. 1 μg readability in production-line weighing.

Product Brochure & Manual

Features

  • Minimum weighing value from 1 μg
  • Fast stabilization of 4.0 seconds for 0.01 mg resolution
  • Suitable for installation and weighing in vacuum chambers
  • Slim separate weighing sensor unit (80 mm width) for compact setups
  • Protection mechanism against vertical and transverse overloading due to actuator malfunctions, etc.
  • Adjustable response characteristics to help cope with the effect of drafts and vibrations
  • Multiple weighing units: g, mg, oz, ozt, ct, mom, dwt, grain, (either tael or tola can be added upon request)
  • Automatic zero display after data output
  • Wall/panel-mountable display unit
  • Possible to create your own weighing pan
  • Five-level comparator contact output with buzzer
  • Chemically resistant, stainless steel* sensor unit
  • GLP/GMP/GCP/ISO compliant output
  • Clock and calendar function
  • Data memory function
  • Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
  • Percent mode function
  • Auto power on function
  • Securable to a base using the provided mounting fixtures

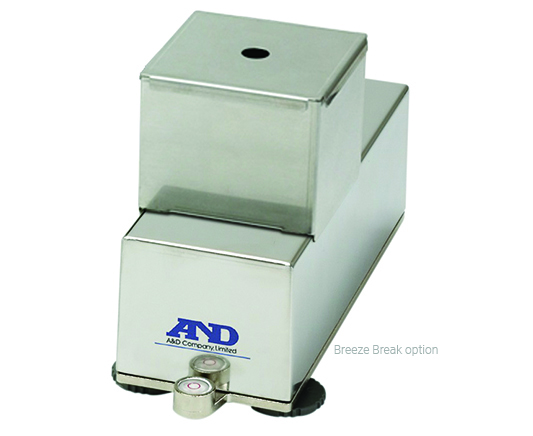

  • Stainless steel breeze break
  • Comes with a free calibration weight (OIML Class E2 equivalent)

Model & Capacity(scroll right for purchase/enquiry details)

Model Capacity Weighing Pan Unit Price
excluding GST
Action
AD-4212B-23
21g x 0.001mg
Ø34 mm $ POA Enquire
AD-4212B-101
31g x 0.01mg / 110g x 0.1mg
Ø34 mm $ POA Enquire
AD-4212B-102
110g x 0.01mg
Ø34 mm $ POA Enquire
AD-4212B-201
210g x 0.1mg
50mm x 50mm $ POA Enquire
AD-4212B-301
310g x 0.1mg
50mm x 50mm $ POA Enquire
