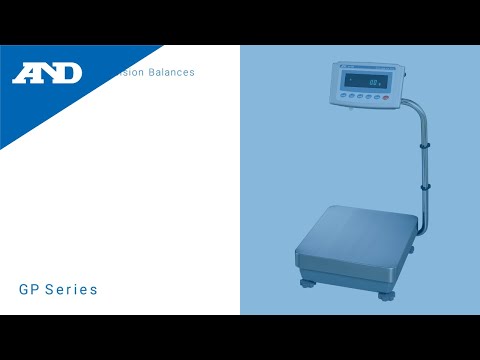

GP Series Industrial Wet Area Warrior Class Scales

These are high capacity scales suitable for use in hostile environments. With IP65 level protection and a column mounted indicator the GP Warrior scale is ideal for working with products that produce spills or debris. Features capacities up to 101kg.
PLEASE NOTE The Trade Approval capacities and resolutions table is at the bottom of this page.

Product Brochure & Manual

Features

  • High resolution down to 0.1g
  • Trade Approved by NMI Australia
  • Industry leading 5 years warranty
  • Utilises the revolutionary Super Hybrid Sensor
  • IP-65 protected to withstand harsh environments
  • Internal Calibration using motor driven masses
  • Vacuum fluorescent display element
  • Multiple weighing units
  • Wide range of capacities and resolutions
  • Maximum capacity 101 kg
  • Overload protected to take hard use
  • Adjustable environmental settings to match your needs
  • Piece counting software as standard
  • Percentage comparison weighing software as standard
  • Built in HI/GO/LO comparator for check weighing
  • Sealed keypad protecting against spills and dust
  • Standard RS232C serial data interface
  • Supplied with WinCT communication software
  • Comparator output option
  • Under hook weighing options
  • Trade Approved N.S.C. Certificate 6/4C/219 (Exception: The GP-40KA is NOT trade approved.)

Additional Information

TRADE APPROVED BALANCE VERIFICATION

When a balance receives a certificate of approval from NSC/NMI it will be approved under a certain class of accuracy which determines the parameters that the machine needs to meet when submitted for trade stamping.

One of the key parameters that will apply is the verification interval which is the minimum increment that the balance can be approved to. Given the high number of divisions displayed by a balance the verification interval for trade will always differ from the best increment of the balance. An example would be in the case of the GX-2000 where the balance can be read to 0.01 g but the verification interval when the machine is stamped for trade is 0.1 g.

Most of the balances will still display the non significant digit, normally highlighted by a bracket or similar, but some balances such as the Class III EK-i will drop the last digit completely, while the EW-150i drops an entire range. It is important to remember that the verification digit is the one to which the balance is certified, to make things clearer we have listed the trade approved balances below complete with their approval accuracy class and verification digit.

Balance Model and Class

NMI Verification Digit

EK-410i 400g x 0.01g Class III Verification Digit 0.1g
EK-610i 600g x 0.01g Class II Verification Digit 0.1g
EK-4100i 4000g x 0.1g Class III Verification Digit 1g
EK-6100i 6000g x 0.1g Class II Verification Digit 1g
EW-150i 30/60/150g X 0.01/0.02/0.05g Class II Verification Digit 0.02g/0.05g dual range
EW-1500i 300/600/1500g X 0.1/0.2/0.5g Class III Verification Digit 0.1g/0.2g/0.5g
EW-12Ki 3000/6000/12000g X 1/2/5g Class III Verification Digit 1g/2g/5g
FZ-300i 320g x 0.001g Class II Verification Digit 0.01g
FZ-3000i 3200g x 0.01g Class II Verification Digit 0.1g
FZ-300i-WP 320g x 0.001g Class II Verification Digit 0.01g
FZ-3000i-WP 3200g x 0.01g Class II Verification Digit 0.1g
GX-8K 8100g x 0.01g Class I Verification Digit 0.1g
GX-10K 10100g x 0.01g Class I Verification Digit 0.1g
GX-20K 20000g x 0.1g Class II Verification Digit 1g
GX-10K 10100g x 0.01g Class II Verification Digit 1g
GP-12KA 12kg x 0.1g Class II Verification Digit 1g
GP-20KA 21kg x 0.1g Class II Verification Digit 1g
GP-32KA 6.1kg x 0.1g /31kg x 1g Class II Verification Digit 1g

Model & Capacity(scroll right for purchase/enquiry details)

Model Capacity Weighing Pan Unit Price
excluding GST
Action
GP-12KA Trade Approved
12kg x 1g
384mm x 344mm $ POA Enquire
GP-20KA Trade Approved
21kg x 1g
384mm x 344mm $ POA Enquire
GP-30KA Trade Approved
31kg x 1g
384mm x 344mm $ POA Enquire
GP-32KA Trade Approved
31kg x 1g
384mm x 344mm $ POA Enquire
GP-100KA Trade Approved
101kg x 10g
386mm x 346mm $ POA Enquire
GP-102KA Trade Approved
61kg x 10g
101kg x 100g
386mm x 346mm $ POA Enquire
GP-12KA Non Trade
12kg x 0.1g
384mm x 344mm $ POA Enquire
GP-20KA Non Trade
21kg x 0.1g
384mm x 344mm $ POA Enquire
GP-30KA Non Trade
31kg x 0.1g
384mm x 344mm $ POA Enquire
GP-32KA Non Trade
6.1kg x 0.1g
31kg x 1g
384mm x 344mm $ POA Enquire
GP-40KA Non Trade
41kg x 0.5g
384mm x 344mm $ POA Enquire
GP-61KA Non Trade
61kg x 0.1g
384mm x 344mm $ POA Enquire
GP-100KA Non Trade
101kg x 1g
386mm x 346mm $ POA Enquire
GP-102KA Non Trade
61kg x 1g
101kg x 10g
386mm x 346mm $ POA Enquire
GP-30KS Non Trade
31kg x 0.1g
386mm x 346mm $ POA Enquire
GP-32KS Non Trade
6kg x 0.1g
31kg x 1g
386mm x 346mm $ POA Enquire
GP-60KS Non Trade
61kg x 1g
386mm x 346mm $ POA Enquire
GP-61KS Non Trade
61kg x 0.1g
386mm x 346mm $ POA Enquire

Accessories & Options(scroll right for purchase/enquiry details)

Accessories & Options Description Unit Price
excluding GST
Action
OP-04 GP Comparator / RS232C / C.Loop Output $ POA Enquire
OP-06 GP Analogue / Current Loop Output $ POA Enquire
OP-20/21 GP Under hooks $ POA Enquire
OP-22 GP AD-8121 printer support $ POA Enquire
  • Product Enquiry
  • Help & FAQ
  • Warranty
  • Submit a Product Enquiry

    For enquiries outside of Australia & New Zealand, please see the list of A&D Global contacts

    Please complete the fields below

    * Required field
  • Is this balance waterproof?

    Yes, the GP Series has IP65 protection.

  • All A&D products purchased within Australia are covered by a warranty period which varies from 12 months to 5 years depending on the model.

    Warranty covers against any defects in the material and workmanship negligence during the manufacture or assembly of the product for the period of the warranty.

    Warranty claims should be submitted through your initial dealer or place of purchase with your proof of purchase tax invoice.
